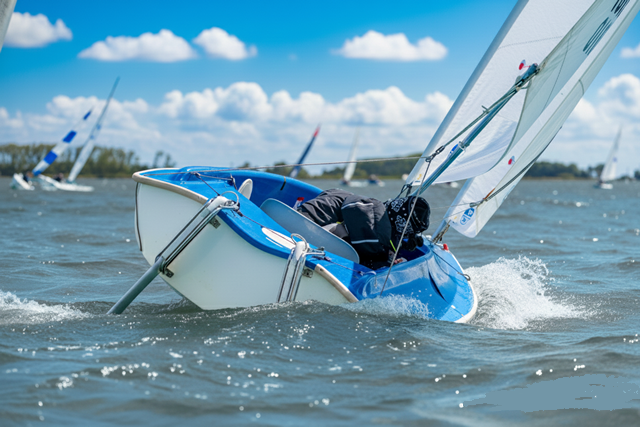

1060 – Liberty S, complete boat ready to sail.

$16,240.30

SKU: 1060 Category: Tag:

Product Description

The Liberty S is a totally accessible, single person performance craft that anyone can sail, regardless of ability. Twenty percent longer than the 303 but the same width makes the Liberty a very fast and high pointing small keel boat. The high coamings and wide side decks on the Liberty S keep the boat dry even at extreme angles of heel and the two high aspect rudder blades ensure directional stability. We recommend the “C” Crane and Keel Caddie for handling Liberty centreboards which weigh 70Kg.

Features
  • Hull has positive buoyancy.
  • ?Steered by manual joystick operating twin rudders to maintain helm control when fully heeled.
  • ?Wide side decking to keep cockpit dry when heeled to extremes.
  • ?Strong construction with solid bonded hull to deck joins.
  • ?With the seat keeping the helm?s weight low plus weighted centreboard, the boat is virtually uncapsizable.
  • ?Mainsail and jib are reefed and un-reefed by single hauling lines.
  • ?Mainsail controlled by a manual mainsheet.
  • ?Jib is self tacking, with a diagonal strut between clew and a claw at the mast which prevents twisting as the sheet is eased.
  • ?Available in 7 different colours with matching sails for easily distinguishable fleet sailing – useful for safety monitoring and video/photo feedback.
  • ?So simple and stable almost anyone can use these boats.
  • ?Extremely comfortable, nimble and above all great fun.
  • The Liberty is a World Sailing Class with regular National, Continental and World Championships

Specifications
Length 3.6m
Beam 1.35m
Draft 1.1m
Weight 80kg (plus centreboard 70kg)
Sail Plan Mainsail & self tacking jib
Sail Area Total area – 7.35m2
Main 5.6m2 (reef-able to 0.5m2)
Jib – 1.75m2 (full roller reefing)
Mast Mainmast – Un-stayed 5.6m
Foremast – Un-stayed 3.15m
Seating Adjustable fibreglass seat
Steering Manual joystick. Optional Servo Assist
Capacity 120kg + 30kg luggage
